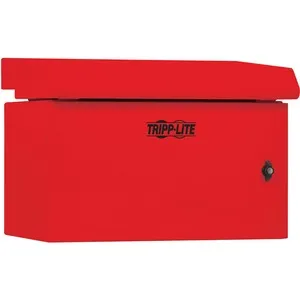

The Tripp Lite by Eaton SmartRack Industrial Enclosure is the ultimate solution for housing your valuable rack-mount equipment securely and efficiently. Designed specifically for rugged environments, this NEMA 3R-rated, wall-mount, metal enclosure is perfect for both indoor and outdoor applications. With its impressive load capacity and specialized features, this enclosure is an essential component for any industrial setup, ensuring that your sensitive equipment is protected from the elements and kept cool for optimal performance.

• Space-Saving Design: The SmartRack industrial enclosure is designed to accommodate 6U of 19-inch rack-mount equipment, such as network switches and patch panels, while occupying minimal wall space. With a depth of only 16.5 inches, it is perfect for areas where space is at a premium.
• Durable Construction: Constructed from high-quality steel and finished with a durable red powder coat, this enclosure is engineered to withstand harsh environmental conditions. Its robust design ensures that it can endure the wear and tear of industrial settings.
• NEMA 3R Rated for Protection: This enclosure is rated NEMA 3R, which means it protects against the ingress of water, including rain, sleet, snow, and ice. It also effectively keeps out solid foreign objects, making it ideal for outdoor applications, including factories, construction sites, and utility plants.
• Enhanced Security Features: To prevent theft, damage, or tampering, the enclosure is fully welded and includes a locking door secured with keys. This ensures that your sensitive equipment remains safe and accessible only to authorized personnel.
• Improved Airflow and Cooling: Built-in internal fans with a thermal switch enhance airflow within the enclosure, helping to keep mounted equipment cool and prolonging its lifespan. This feature is crucial for maintaining the performance and reliability of your devices.

Technical Details

• Model: SRN3RR6U
• Dimensions: 6U, 16.5 inches deep
• Load Capacity: 200 pounds (90.7 kilograms)
• Material: Steel with red powder-coated finish
• Mounting Type: Wall mount
• NEMA Rating: 3R

How to Install

Installing the Tripp Lite SmartRack Industrial Enclosure is a straightforward process:

1. Ensure you have the necessary user-supplied mounting hardware ready.
2. Locate the desired mounting location on the wall, ensuring it can support the weight of the enclosure and its contents.
3. Use a level to mark the position of the enclosure on the wall.
4. Drill the appropriate holes for the mounting hardware, then attach the enclosure securely to the wall.
5. Adjust the front and rear mounting rails as necessary to accommodate your specific 19-inch rack-mount equipment.
6. Install your equipment inside the enclosure, securing it with the provided mounting hardware.
7. Connect data and power cables through the bottom conduit cutout for a clean installation.
8. Finally, close and lock the door securely to ensure the safety of your equipment.

Frequently Asked Questions

• What is the maximum load capacity of the enclosure?
  The Tripp Lite SmartRack Industrial Enclosure has a maximum load capacity of 200 pounds (90.7 kilograms).
• Is the enclosure suitable for outdoor use?
  Yes, this enclosure is designed for both indoor and outdoor applications and is rated NEMA 3R for protection against harsh weather conditions.
• Can I install this enclosure by myself?
  Yes, the enclosure comes fully assembled and is designed for easy wall mounting with user-supplied hardware.
• What type of equipment can I store in this enclosure?
  You can store a variety of 19-inch rack-mount equipment, including network switches, patch panels, and other sensitive devices.
• How does the thermal switch work with the fans?
  The built-in fans with a thermal switch automatically activate when the temperature inside the enclosure rises, helping to maintain optimal operating conditions for your equipment.
